Universal Reliability Test System for Smart Power Devices suitable for Automotive market
Stress like final application emulating the real loads, via the optional External Load Platform
Per DUT high current PS channel
Automotive Grade-0 compliancy – Temperature: -40°C to 150°C
Thermal Chamber with Air Cooling Technology. High Temperature Uniformity: ±3°C at full load.
smART-Lite Fixture is provided of #192 pin contacts, 3A each, to connect each DUT to High Power loads outside the oven on External Load Platform
Real load emulation like motors, solenoids, bulbs, lamps ...

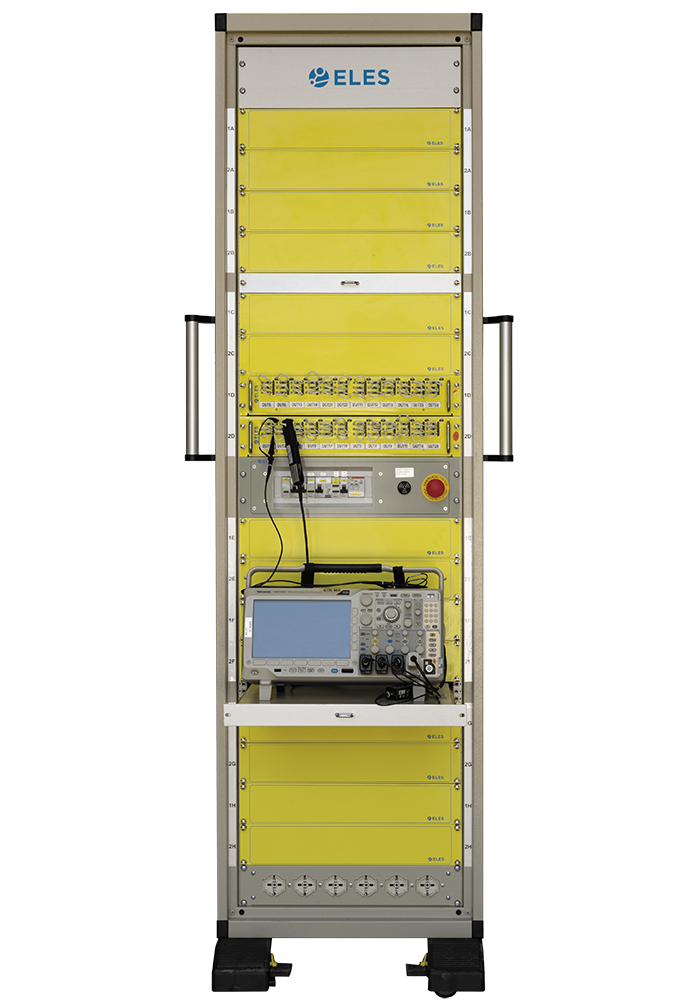

External Load Platform (ELP) characteristics:
Rack 19’’, 42 units
16 indipendent Load Boards
Air temperature control system
Max Pdiss=32KW (2KW each Load Board)
Probing Interface to measure voltage, current and waveform of each load
HTOLLTOLHTRBELFRTDBI – Trials
