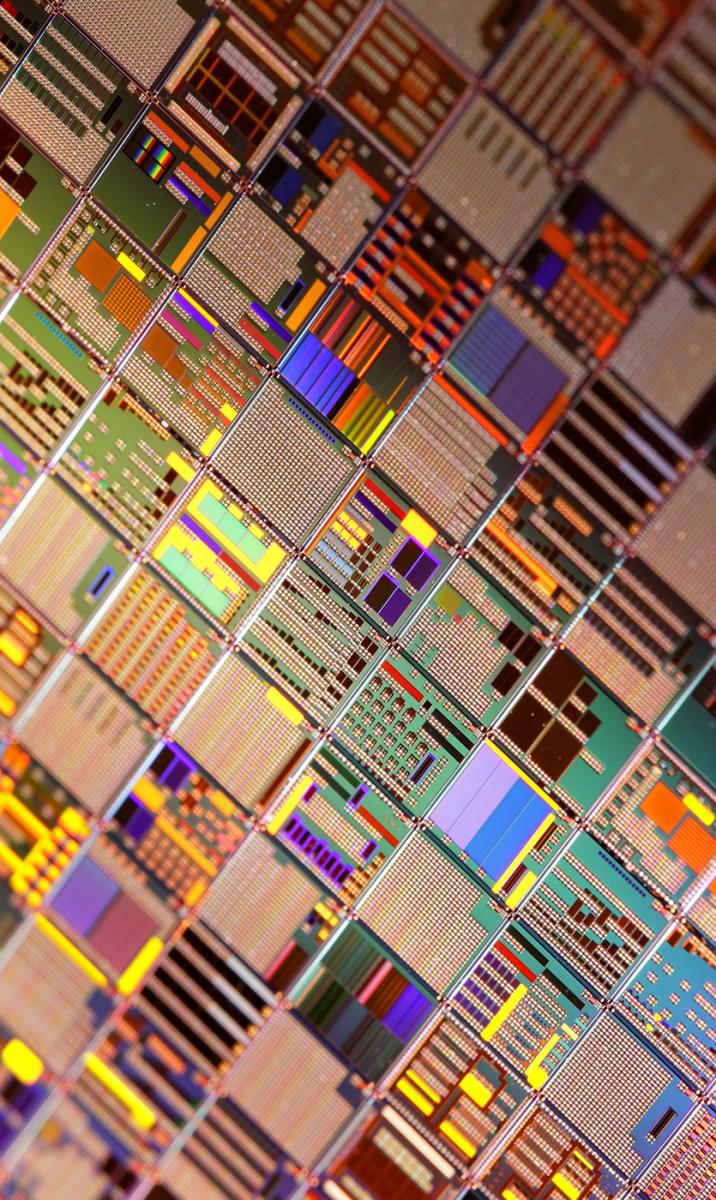

Wafer and Package Level Test and Burn-in System

Augmented Test / stress coverage including Dynamic Gate Stress

  • Dices stress up to 2,5KV
  • HTRB, HTGB stress
  • IDSs, IGSs, Vth, BVDss Measurements
  • Dynamic Gate stress up to 150KHz

Modular and Scalable Tester Architecture

  • Full wafer stress and test up to 3.000 dices in parallel
  • Modular and configurable dices Power Supply subsystem up to 2,5KV
  • Plug & Play on field reconfiguration

Guaranteed Stress and Test accuracy

  • Stress not affected by dices different leakage level
  • Short interconnections to maximize measurement accuracy and dynamic gate stress performances

High power efficiency - «Per die» Tester Architecture

  • Independent per channel protection of tester electronics/contacts vs in-die and intra-die issues (i.e. short circuits, arching, ...)
  • Micropower consumption design

High Parallelism in a Compact Footprint and Volume for minimized COO

  • Up to 3K dices tested in a compact footprint/volume: 600x750x300mm (W-D-H)
  • Suitable for compact vertical Test Cell Solutions
